JN Series Vertical Shaft Planetary Mixer for Special Concrete Industry with Charging Capacity 1000L~3000L Capacity

Short Description:

Product Application JN Vertical Shaft Planetary Mixer has the advantages of compact structure,high performance,applicable to block,pile and precast industry.Planetary mixing allows the materials to be mixed more evenly,the machine drive system without shaft end leakage,convenient disassembly and repair.The mixing silo has large space for convenient maintenance.In addition to mixing ordinary concrete,it can be used to mix colorful concrete,steel fiber concrete,foaming concrete and other speci...


  • FOB Price: US $0.00 - 49999.99/ Set
  • Place of Origin: Anhui, China (Mainland)
  • Min.Order Quantity: 1 Set
  • Supply Ability: 300 Sets / Month
  • Port: Shanghai/Ningbo
  • Payment Terms: T/T,L/C
  • Warranty: One Year
  • After-sales Service: Engineers available to service machinery overseas
  • Delivery Time: 30 working days after PO is confirmed.
  • Packaging Details: 1.Outside Package:Standard export wooden case; 2.Inner Package:Stretch films
  • Application: Commercial Concrete Mixing Plants
  • Motor Power: 37~110kw
  • Charging Capacity: 1600L~4800L
  • Reclaiming Capacity: 1000L~3000L
  • Water Supply Mode: Hydraulic Pump
  • Working Cycle Period: ≤40~45s
  • Discharge Way: Hydraulic Discharging
  • Automatic Grade: Fully Automatic
  • Production Capacity: 60~180m3/h
  • Number of Mixing Blades: 4~6pcs
  • Number of Mixing Scrapers: 2~3pcs
  • Max.Diameter of Aggregate(Detritus/Pebble): 60/80~100/150mm
  • Weight: 7000~12000kg
  • Certificates: ISO9001;ISO14001
  • Outline Dimensions(L*W*H): As per requirements
  • Product Detail

    Product Tags

    Product Application

    JN Vertical Shaft Planetary Mixer has the advantages of compact structure,high performance,applicable to block,pile and precast industry.Planetary mixing allows the materials to be mixed more evenly,the machine drive system without shaft end leakage,convenient disassembly and repair.The mixing silo has large space for convenient maintenance.In addition to mixing ordinary concrete,it can be used to mix colorful concrete,steel fiber concrete,foaming concrete and other special concrete,and it also can be applied to glass,ceramic,refractory materials and other materials.

    SPECIFICATIONS FOR JN SERIES VERTICAL SHAFT PLANETARY MIXER
    MODEL
    Charging Capacity(L)
    Discharging Capacity(L)
    Production Capacity(m3/h)
    Mixing Motor Power(kw)
    Mixing Time(s)
    Transportation Dimensions(L*W*H)(mm)
    1600
    100
    60
    37
    ≤40
    2900*2900*2500
    2400
    1500
    90
    55
    ≤45
    3260*2960*2860
    3200
    2000
    120
    75
    ≤45
    3650*3200*2900
    4800
    3000
    180
    110
    ≤45
    3900*3600*3100





    Main Features

    1) Discharging device.The number of discharging doors is 3 at most,according to customers’ requirement.

    2) Mixing system,made of high chrome alloy,steel castings,significantly improve the service life.

    3) Specially designed hydraulic pumping station,and with manual unloading function.In emergency situation to manually open the discharging door to prevent the materials agglomeration.

    4) With high performance of planetary gear reducer and motor,so that the machine running stable,low noise,large output torque and very durable.

    Detailed Images

    JN Series Vertical Shaft Planetary Mixer Parts

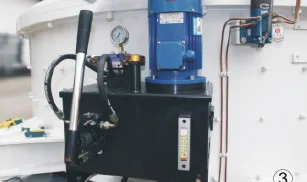

    Name: Hydraulic Pump Station
    Brand: Jinrui
    Original: China(mainland)
    Specially designed hydraulic pumping station,and with manual unloading function.In emergency situation to manually open the discharging door to prevent the materials agglomeration.





    JN Series Vertical Shaft Planetary Mixer Parts

    Name: Mixing Motor
    Brand: Jinrui
    Original: China(mainland)
    With high performance of planetary gear reducer and motor,so that the machine running stable,low noise,large output torque and very durable.









    Packing & Delivery

    Complete Solving Solution for Concrete Mixing
