JS Series Standard Horizontal Twin Shaft Mixer for Concrete Industry with Charging Capacity 1250L~4500L Capacity

Short Description:

Product Application JS Series Standard Twin-shaft Concrete Mixer,inspired by advanced technologies from home and abroad,was manufactured by our company in the year 2004.Ever since it was sold into the market,its stable performance and excellent quality have quickly won the trust of majority of users.Now it has become our star products.It is mainly used in the mixing plants of high speed railways,expressways,airports,hydropower stations,commercial concrete and so on. SPECIFICATIONS FOR J...


  • FOB Price: US $0.00 - 49999.99/ Set
  • Place of Origin: Anhui, China (Mainland)
  • Min.Order Quantity: 1 Set
  • Supply Ability: 300 Sets / Month
  • Port: Shanghai/Ningbo
  • Payment Terms: T/T,L/C
  • Warranty: One Year
  • After-sales Service: Engineers available to service machinery overseas
  • Delivery Time: 30 working days after PO is confirmed.
  • Packaging Details: 1.Outside Package:Standard export wooden case; 2.Inner Package:Stretch films
  • Application: Commercial Concrete Mixing Plants
  • Motor Power: 2*(37~75)kw
  • Charging Capacity: 2000L~7200L
  • Reclaiming Capacity: 1250L~4500L
  • Water Supply Mode: Hydraulic Pump
  • Working Cycle Period: ≤40~45s
  • Discharge Way: Hydraulic Discharging
  • Automatic Grade: Fully Automatic
  • Production Capacity: 75~270m3/h
  • Mixing Shaft Rotation Speed: 22.85~29.67r/min
  • Number of Mixing Arms: 12~22pcs
  • Max.Diameter of Aggregate(Detritus/Pebble): 60/80~100/150mm
  • Weight: 5300~12300kg
  • Hydraulic System Motor Power: 2.2kw
  • Certificates: ISO9001;ISO14001
  • Outline Dimensions(L*W*H): As per requirements
  • Product Detail

    Product Tags

    Product Application

    JS Series Standard Twin-shaft Concrete Mixer,inspired by advanced technologies from home and abroad,was manufactured by our company in the year 2004.Ever since it was sold into the market,its stable performance and excellent quality have quickly won the trust of majority of users.Now it has become our star products.It is mainly used in the mixing plants of high speed railways,expressways,airports,hydropower stations,commercial concrete and so on.

    SPECIFICATIONS FOR JS SERIES STANDARD TWIN-SHAFT CONCRETE MIXER
    MODEL
    Charging Capacity(L)
    Discharging Capacity(L)
    Production Capacity(m3/h)
    Mixing Motor Power(kw)
    Mixing Time(s)
    Transportation Dimensions(L*W*H)(mm)
    2000
    1250
    75
    2*22
    ≤40
    3000*2100*2900
    2400
    1500
    90
    2*30
    ≤40
    2900*2320*2150
    3200
    2000
    120
    2*37
    ≤40
    3450*2320*2250
    4800
    3000
    180
    2*55
    ≤45
    3900*2600*2230
    6400
    4000
    240
    2*75
    ≤45
    4500*2600*2230
    7200
    4500
    270
    2*75
    ≤45
    4700*2600*2280


    Main Features

    1) This host monitoring system monitors the hydraulic pumps, reducer oil temperature and oil level real-timely.

    2) Adopting high-performance angular transmission reducer and motor.

    3) Shaft end sealing uses a unique differential pressure type multi-sealing technology.

    4) Adopting advanced hydraulic system to open and shut the discharging door.

    5) The mixing system adopts the design of multiple mixing blades .

    Detailed Images

    JS Series Twin-shaft Concrete Mixer Parts

    Name: Host Monitoring System

    Brand: Jinrui

    Original: China(mainland)

    This host monitoring system has applied for national patent.Real-time system for hydraulic pumps and retarder oil temperature,oil level,through the monitor realization of information tips and acousto-optic alarm.Users can discover and deal with faults to improve the service life of the host machine.

    JS Series Twin-shaft Concrete Mixer Parts

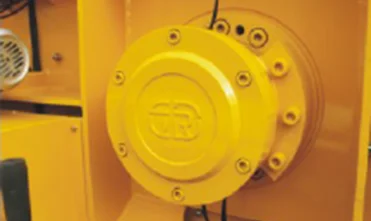

    Name: Shaft End Sealing
    Brand: Jinrui
    Original: China(mainland)
    Shaft end sealing uses a unique differential pressure type multi-sealing technology, greatly improving the service life of the shaft ending.







    JS Series Twin-shaft Concrete Mixer Parts

    Name: Hydraulic  Pressure System
    Brand: Jinrui
    Original: China(mainland)
    Adopting advanced hydraulic system to open and shut the discharging door,under the circumstance of sudden power failure,the manual pump is used to open the discharging valve to make an urgent discharge,to prevent the agglomeration of concrete in the mixer silo.



    JS Series Twin-shaft Concrete Mixer Parts

    Name: Mixing System
    Brand: Jinrui
    Original: China(mainland)
    The mixing system adopts the design of multi mixing blades,with no dead angle,which enables to have the perfect mixing efficiency in a short time.





    Packing & Delivery

    900300delivery













    Complete Solving Solution for Concrete Mixing.

    Several sets of mixing plants are loaded for delivery to Middle Asia market on date Apr.11th.2013.
